The first time you access the POS, you must access it through the portal at http://portal.k3imagine.com. You must do the same if you have cleared your local storage.


Once you have accessed it through the portal, you can access it through http://pos.k3imagine.com. This can be bookmarked or set as a home page within your browser settings.



The top bar lets you access a few different functions.


Allows you to set the default connector that this POS uses


Toggles full screen mode (on supported browsers)


Alerts you of any notifications or messages from the head office


Allows you to access other functions and brings up a side menu. The only option on the home page is Portal Logout.


The second section shows some basic statistics from the last transaction. The sales value and the change issued. This can be disabled in the Admin module.

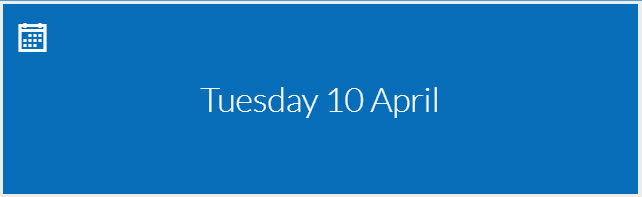

In the middle section, the date is shown...

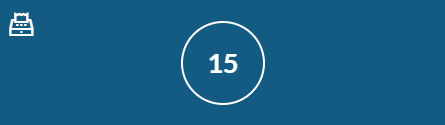

... as is the POS number that is assigned to this device. This number is held in local storage and is not fixed to the device. That means if the cache is cleared from the browser, a new POS number will be generated and assigned. This is because the POS is fully portable and not device specific. When the POS number reaches 99, it will look for the lowest unused POS number.



It also displays the login box. Here is where you enter your Clerk number and password.



After you have completed a sale, you can quickly log back in using the below button which replaces the login panel if you tap it before the timer runs down. You can also quickly expire the timeout by pressing the Sign Out button.



There is also a panel which shows some basic sales metrics. This panel can be disabled in the Admin module. Note: the panel excludes any Expenses transactions from its totals
